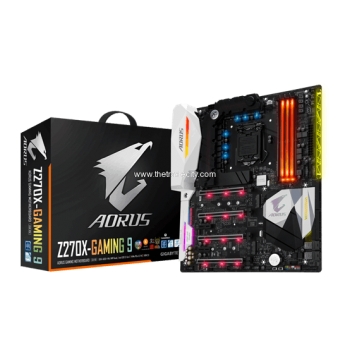

Gigabyte Z270X Gaming 9

Local Price :

BDT 58000.00/ Piece. 0.00 / Piece | Get Latest Price

FOB Price :

0.00-0.00 / | Get Latest Price

Min.Order Quantity :

0

Supply Ability :

per

Port :

Payment Terms :

Cash

Code :

25851

Buy Now Contact Supplier   Leave Message
Quick Details

Model No Z270X Gaming 9

Brand NameGigabyte

Origin

Size

Short Details




Packaging & Delivery

Packaging Details

Delivery Details

  • CPU
    1. Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® Z270 Express Chipset
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:
    1. 1 x Intel® Thunderbolt™ 3 connector, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
      * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
      * Support for DisplayPort 1.2 version.
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version.
    Integrated Graphics Processor+MegaChips MCDP2800 chip:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version. (Requires the latest Intel® graphics driver from the GIGABYTE website.)
    Support for up to 3 displays at the same time
    Maximum shared memory of 1 GB
  • Audio
    1. Creative® Sound Core 3D chip
    2. 2 x JRC NJM2114 and 1 x TI Burr Brown® OPA2134 operational amplifiers
    3. Support for Sound Blaster ZxRi
    4. High Definition Audio
    5. 2/5.1-channel
    6. Support for S/PDIF Out
  • LAN
    1. 2 x Killer™ E2500 LAN chips (10/100/1000 Mbit)
  • Wireless Communication module
    1. Killer™ Wireless-AC 1535
    2. Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
    3. Bluetooth 4.1
    4. Support for 11ac wireless standard and up to 867 Mbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots
    1. 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
    2. 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
      * The PCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2 slot with PCIEX16_2. The PCIEX16_1/PCIEX16_2 slot operates at up to x8 mode when the PCIEX8_1/PCIEX8_2 is populated.
      (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)
    3. 2 x PCI Express x1 slots
      (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • Storage Interface
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)
    2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
    3. 2 x U.2 connectors
    4. 3 x SATA Express connectors
    5. 6 x SATA 6Gb/s connectors (SATA3 0~5)
    6. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to "1-12 Internal Connectors," for the installation notices for the U.2, M.2, and SATA connectors.
    ASMedia® ASM1061 chip:
    1. 2 x SATA 6Gb/s connectors (SATA3 6, 7), supporting AHCI mode only
  • Multi-Graphics Technology
    1. Support for NVIDIA® Quad-GPU SLI™ and 4-Way/3-Way/2-Way NVIDIA® SLI™ technologies
    2. Support for AMD Quad-GPU CrossFireX™ and 4-Way/3-Way/2-Way AMD CrossFire™ technologies
  • USB
    Chipset+Intel® Thunderbolt™ 3 Controller:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
    2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
    Chipset+Realtek® USB 3.1 Gen 1 Hub:
    1. 4 x USB 3.1 Gen 1 ports available through the internal USB headers
    Chipset:
    1. 5 x USB 3.1 Gen 1 ports on the back panel
    2. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x water cooling CPU fan header
    5. 4 x system fan headers
    6. 2 x system fan/water cooling pump headers
    7. 1 x I/O shield audio LED power connector
    8. 2 x RGB (RGBW) LED strip extension cable headers
    9. 3 x SATA Express connectors
    10. 8 x SATA 6Gb/s connectors
    11. 2 x M.2 Socket 3 connectors
    12. 2 x U.2 connectors
    13. 1 x front panel header
    14. 1 x front panel audio header
    15. 2 x USB 3.1 Gen 1 headers
    16. 2 x USB 2.0/1.1 headers
    17. 1 x Trusted Platform Module (TPM) header
    18. 1 x Thunderbolt™ add-in card connector
    19. 1 x Clear CMOS jumper
    20. 2 x temperature sensor headers
    21. 1 x power button
    22. 1 x reset button
    23. 1 x Clear CMOS button
    24. 1 x ECO button
    25. 1 x OC button
    26. 2 x audio gain control switches
    27. 2 x BIOS switches
    28. Voltage Measurement Points
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 2 x MMCX antenna connectors (2T2R)
    3. 1 x HDMI port
    4. 1 x DisplayPort
    5. 1 x Thunderbolt™ 3 connector (USB Type-C™ port, with USB 3.1 Gen 2 support)
    6. 1 x USB 3.1 Gen 2 Type-A port (red)
    7. 5 x USB 3.1 Gen 1 ports
    8. 2 x RJ-45 ports
    9. 1 x optical S/PDIF Out connector
    10. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
  • BIOS
    1. 2 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. Support for Q-Flash Plus
      * The USB flash drive used must be a USB 2.0 flash drive.
    5. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      AutoGreen
      BIOS Setup
      Color Temperature
      Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      Game Boost
      GIGABYTE HW OC APP
      ON/OFF Charge
      Platform Power Management
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      System Information Viewer
      USB Blocker
      USB DAC-UP 2
      V-Tuner
    2. Support for 3TB+ Unlock
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. Intel® Optane™ Memory Ready
  • Operating System
    1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
    2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. E-ATX Form Factor; 30.5cm x 26.4cm
  • Box Contents
    1. GA-Z270X-Gaming 9 motherboard
    2. Motherboard driver disk
    3. User's Manual
    4. Quick Installation Guide
    5. Six SATA cables
    6. I/O Shield
    7. One Wi-Fi antenna
    8. One Wi-Fi antenna retention cover
    9. One GC-SLI23P SLI bridge connector
    10. One 3-Way SLI bridge connector
    11. One 4-Way SLI bridge connector
    12. One 2-Way CrossFire bridge connector
    13. Two RGB (RGBW) LED strip extension cables
    14. One Accent Lighting LED Strip
    15. Two thermistor cables
    16. One G Connector
    17. Two Velcro Cable Ties
    18. One pack of back I/O dust covers
