Electronics > Computer Hardware & Software > Motherboards

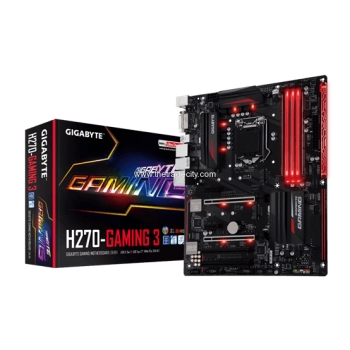

Gigabyte GA H270 GAMING 3

Local Price :

BDT 13000.00/ Piece. 0.00 / Piece | Get Latest Price

FOB Price :

0.00-0.00 / | Get Latest Price

Min.Order Quantity :

Supply Ability :

per

Port :

Payment Terms :

Cash

Code :

25860

+8801830203055 (Rabiul Islam)

Buy Now Contact Supplier Leave Message

Add to inquiry cart Add to compare Show all product

Add to inquiry cart Add to compare list Show all product

Product Details
Company Profile

Quick Details

Model NoGA H270 GAMING 3

Brand NameGigabyte

Origin

Size

Short Details

Packaging & Delivery

Packaging Details

Delivery Details

CPU
1. Support for 7^th and 6^th generation Intel^® Core™ i7 processors/ Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/ Intel^® Pentium^®processors/Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® H270 Express Chipset
Memory
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 2400* / 2133 MHz memory modules
  * To support 2400 MHz or XMP memory, you must install a 7^th generation processor.
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
  * To support 2400 MHz or XMP memory, you must install a 7^th generation processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
  * Support for HDMI 1.4 version.
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1 GB
Audio
1. Realtek^® ALC1220 codec
2. Support for Sound Blaster X-Fi MB5
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out
LAN
1. 1 x Killer™ E2500 LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  * The PCIEX4 slot shares bandwidth with the PCIEX1_1 and PCIEX1_2 slots. The PCIEX4 slot operates at up to x1 mode when the PCIEX1_1 or PCIEX1_2 slot is populated.
3. 2 x PCI Express x1 slots
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
4. 2 x PCI slots
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A1_32G)
2. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)(M2A2_32G)
3. 2 x SATA Express connectors
4. 6 x SATA 6Gb/s connectors
5. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Multi-Graphics Technology
1. Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies
USB
Chipset+ASMedia^® ASM2142 USB 3.1 Gen 2 Controller:
1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
2. 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
Chipset:
1. 8 x USB 3.1 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x M.2 Socket 3 connectors
4. 2 x SATA Express connectors
5. 6 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 1 x water cooling CPU fan header
8. 2 x system fan headers
9. 1 x system fan/water cooling pump header
10. 1 x front panel header
11. 1 x front panel audio header
12. 2 x USB 3.1 Gen 1 headers
13. 2 x USB 2.0/1.1 headers
14. 1 x RGB (RGBW) LED strip extension cable header
15. 1 x S/PDIF Out header
16. 1 x serial port header
17. 1 x Trusted Platform Module (TPM) header
18. 1 x Thunderbolt™add-in card connector
19. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port
2. 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
3. 1 x USB 3.1 Gen 2 Type-A port (red)
4. 1 x DVI-D port
5. 1 x HDMI port
6. 4 x USB 3.1 Gen 1 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  BIOS Setup
  Color Temperature
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Game Boost
  ON/OFF Charge
  Platform Power Management
  RGB Fusion
  Smart Backup
  Smart Keyboard
  Smart TimeLock
  System Information Viewer
  USB Blocker
  USB DAC-UP 2
  V-Tuner
2. Support for 3TB+ Unlock
3. Support for Q-Flash
4. Support for Xpress Install
Bundle Software
1. Norton^® Internet Security (OEM version)
2. Intel^® Optane™ Memory Ready
Operating System
1. Windows^® 10 64-bit (for 7^th Generation Intel^® Processors)
2. Windows^® 10 64-bit / Windows^® 8.1 64-bit / Windows^® 7 32-bit / 64-bits (for 6^th Generation Intel^® Processors)
  * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
Box Contents
1. GA-H270-Gaming 3 motherboard
2. Two SATA cables
3. Motherboard driver disk
4. I/O Shield
5. User's Manual
6. One G Connector
