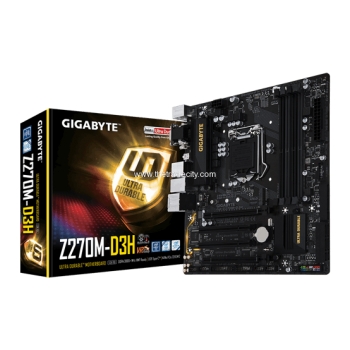

Gigabyte Z270M-D3H

Local Price :

BDT 11500.00/ Piece. 0.00 / Piece | Get Latest Price

FOB Price :

0.00-0.00 / | Get Latest Price

Min.Order Quantity :

0

Supply Ability :

per

Port :

Payment Terms :

Cash

Code :

25859

+8801830203055 (Rabiul Islam)

Buy Now Contact Supplier   Leave Message
Add to inquiry cart   Add to compare   Show all product
Add to inquiry cart       Add to compare list       Show all product
Quick Details

Model NoZ270M-D3H

Brand NameGigabyte

Origin

Size

Short Details



Packaging & Delivery

Packaging Details

Delivery Details

  • CPU
    1. Support for 7th and 6th generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
  • Chipset
    1. Intel® Z270 Express Chipset
  • Memory
    1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
      * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    2. Dual channel memory architecture
    3. Support for DDR4 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
      * The DVI-D port does not support D-Sub connection by adapter.
    3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
      * Support for HDMI 1.4 version.
    Support for up to 3 displays at the same time
    Maximum shared memory of 1 GB
  • Audio
    1. Realtek® ALC892 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
    4. Support for S/PDIF Out
  • LAN
    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
      * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    3. (All of the PCI Express slots conform to PCI Express 3.0 standard.)
    4. 2 x PCI slots
  • Storage Interface
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
    2. 3 x SATA Express connectors
    3. 6 x SATA 6Gb/s connectors
    4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
      * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
  • Multi-Graphics Technology
    1. Support for AMD Quad-GPU CrossFireX™ and 2-Way AMD CrossFire™ technologies
  • USB
    Chipset:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
    2. 8 x USB 3.1 Gen 1 ports (6 ports on the back panel, 2 ports available through the internal USB headers)
    3. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x M.2 Socket 3 connector
    4. 3 x SATA Express connectors
    5. 6 x SATA 6Gb/s connectors
    6. 1 x CPU fan header
    7. 3 x system fan headers
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x S/PDIF Out header
    11. 1 x USB 3.1 Gen 1 header
    12. 2 x USB 2.0/1.1 headers
    13. 1 x Trusted Platform Module (TPM) header
    14. 1 x serial port header
    15. 1 x parallel port header
    16. 1 x Clear CMOS jumper
  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x DVI-D port
    4. 1 x HDMI port
    5. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
    6. 6 x USB 3.1 Gen 1 ports
    7. 1 x RJ-45 port
    8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      3D OSD
      @BIOS
      Ambient LED
      AutoGreen
      BIOS Setup
      Color Temperature
      Cloud Station
      EasyTune
      Easy RAID
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      Smart Backup
      Smart Keyboard
      Smart TimeLock
      System Information Viewer
      USB Blocker
      V-Tuner
    2. Support for 3TB+ Unlock
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundle Software
    1. Norton® Internet Security (OEM version)
    2. Intel® Optane™ Memory Ready
    3. cFosSpeed
  • Operating System
    1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
    2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
      * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
  • Form Factor
    1. Micro ATX Form Factor; 24.4cm x 22.5cm
