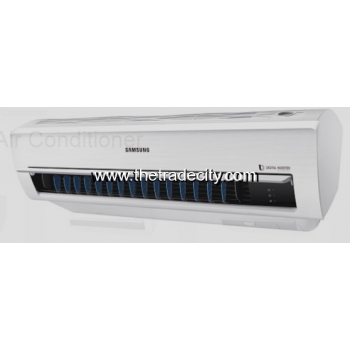

Air Conditioner

Capacity

Capacity (Cooling, Btu/hr)-12000
Capacity (Cooling, kW)-3.5
Capacity (Cooling, Kcal/hr)-3025

Energy Efficiency

EER (Cooling, W/W)-2.61
EER (Cooling, Btu/hW)-8.90

Noise Level (For Catalog)

Noise Level (Indoor, High/Low, dBA)-36/26
Noise Level (Outdoor, High/Low, dBA)-50

Electrical Data

Power Source(Φ/V/Hz)1/220-240/50
Power Consumption(Cooling, W)-1348
Operating Current(Cooling, A)-5.6

Physical specification

Net Dimension (Indoor, WxHxD, ?*?*?)-826*260*275
Net Dimension (Outdoor, WxHxD, ?*?*?)-660*475*242
Gross Weight (Indoor, kg)-11.5
Gross Weight (Outdoor, kg)-25
Net Weight (Indoor, kg)-10
Net Weight (Outdoor, kg)-23

Technical Information

Piping Length (Max, m)-15

Piping Height (Max, m)-7

SVC Valve (Liquid (ODxL))-6.35
SVC Valve (Gas (ODxL))-12.7
Moisture Removal (l/hr)-1.2
Air Circulation (Cooling, ?/min)-11
Low Ambient (Cooling, ?)-15~43
Outdoor Unit (Compressor Type)-Rotary

Outdoor Unit (Anti-Corrosion Fin)-Yes
Outdoor Unit (Multi-Channel Condensor)-Yes
Refrigerant (Type)-R22

Air Flow

Optimal Single Blade-Yes
Air Direction Control (Up/Down)-Auto
Air Direction Control (Left/Right)-Manual
Air Flow Control Step (Cool/Fan) 4 Steps

Air Purification

Auto Clean (Self Cleaning)
Virus Doctor
Easy filter

Convenience

Smart wifi-No
Filter Cleaning Indicatior-No
Indoor Temp. Display-No
Display On/Off-No
Beep On/Off-Yes
24-Hour Timer-Yes
Auto Changeover-No
Auto Restart-Yes

Operating Mode

2 Step Cooling-Yes

Fast Cool-Yes

Comfort Cool-Yes

Good Sleep-Yes

Single User Mode-Yes

Dehumidification-Yes

Fan Mode-Yes

Quiet-No

WARRANTY
